Aluminum Boat and Yacht

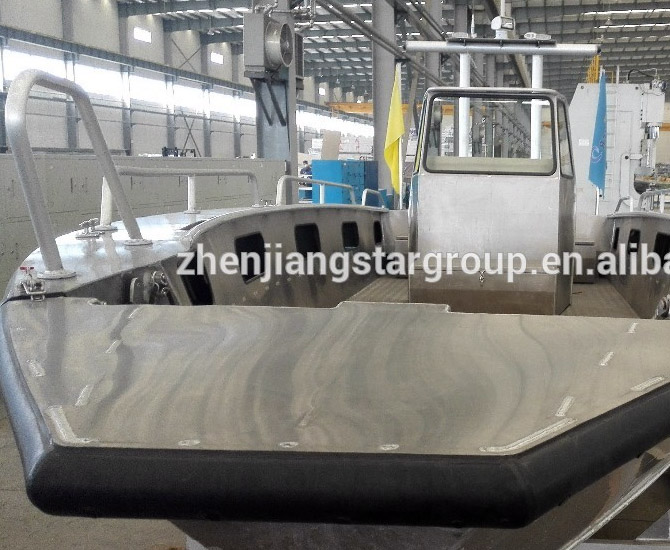

Aluminium Work Boat Hull & Yacht Hull

We could produce diffent aluminum Boat Hull & Yacht Hull, according to Clients drawing and design.

Length:3-40 meters
Materails:aluminum 5083,5052

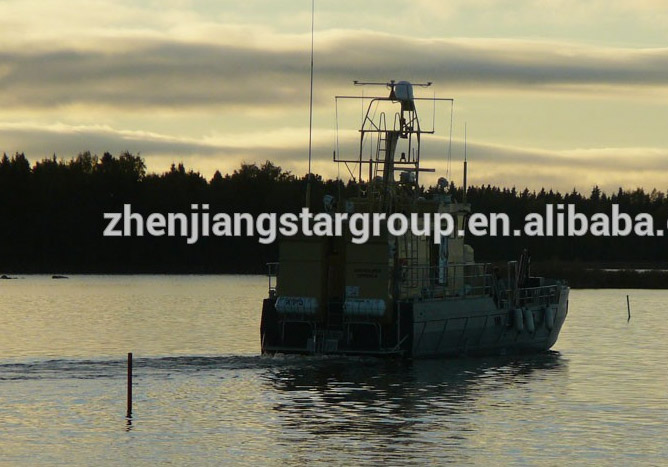

Aluminium Work Boat & Yacht

Designed to work in the Swedish maritime area, with the entire Baltic Sea as her region. The first boat in the Work 2200 series was designed as a seafloor research vessel. The vessel can accommodate 10-12 persons. Can be equipped with a derrick, when necessary. The cabiní»s interior, with its toilet/shower and galley, is very comfortable. The equipment in the galley includes 2 microwave ovens, a stove, refrigerator, dishwasher and range hood. This model also comes with a bow door to facilitate loading.

Length, loa

21.6 m

Length, wl

18 m

Beam, boa

6 m

Beam, bwl

5 m

Draft, d

1.5 m

Displacement, mMOC

42.6 t

Displacement, mLDC

49.9 t

Max load, DWT

7.2 t

Speed, V

22 knots

Speed, vMAX

24

Main Engines

Scania DI 16

Engines power

2x 750kW / 750hp

Propulsion

Rolls-Royce FF500

Fuel capacity

4000L

Crew

12

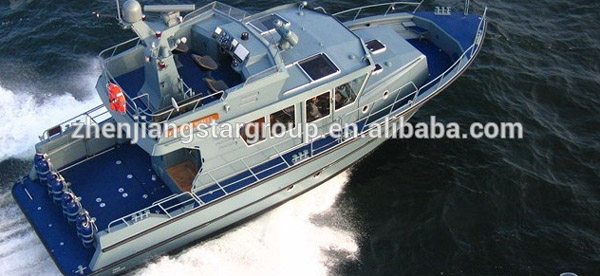

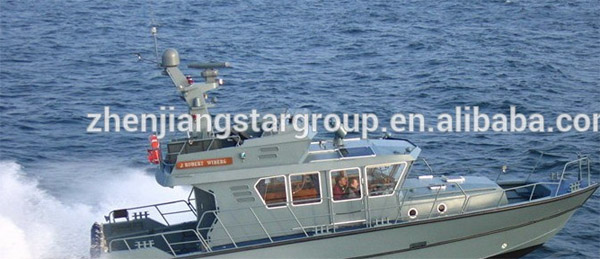

Aluminium Official Boat & Yacht

Length

14.88m

Waterline length

12.484m

Depth moulded

1.673m

Breadth moulded

4.16m

Load draught

0.73m

Load dainage volume

17.0t

Passenger

10p

Crew

2p

Designed speed

45Kn

Main engine

Scania

Aluminium Taxi Boat & Yacht

completely new design, and is one of few aluminium-built passenger boats that is certified for sea area D in accordance with the Non-SOLAS directive (2009/45/EC). This calls for a high standard of fire safety features, and the general equipment level is considerably higher as well, compared to the existing E-class Taxis. This means that Taxi 1500D can operate on routes and in areas that existing water buses are not allowed to enter, opening up new areas of the outer archipelago and beyond for regular service routes as well as charter.

Taxi 1500D can comfortably seat up to 30 passengers, and its two 500 horsepower engines propels it to a top speed of 28 knots.

Length, loa

15 m

Beam, boa

4.25 m

Draft, d

0.9 m

Displacement, mLDC

21 t

Speed, vMAX

28 knots

Main Engines

2x Iveco 9L 500

Engines power

2x 370 kW /500 hp

Waterjets

Rolls-Royce F450S

Propulsion

Propeller

Fuel capacity

1270L

Crew

1

Passengers

30

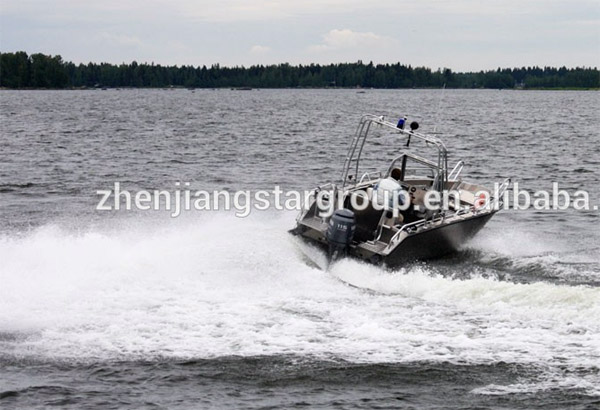

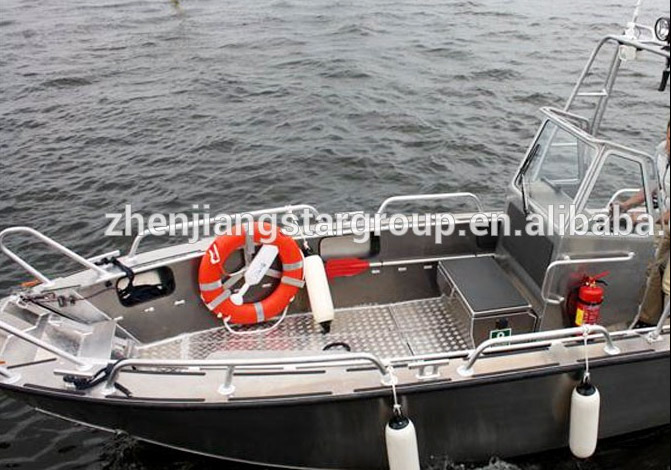

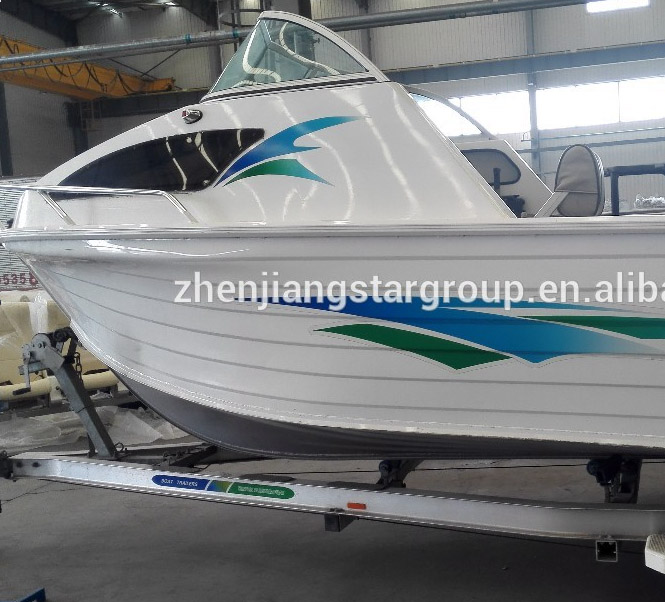

Aluminium Easy Boat & Yacht

Length, loa

8 m

Length, wl

6.8 m

Beam, boa

2.8 m

Beam, bwl

2.2 m

Draft, d

0.46 m

Displacement, mMOC

1.4 t

Displacement, mLDC

2.5 t

Max load, DWT

0.6 t

Speed, vMAX

>40 knots

Main Engines

Yamaha

Engines power

150 kW / 300 hp

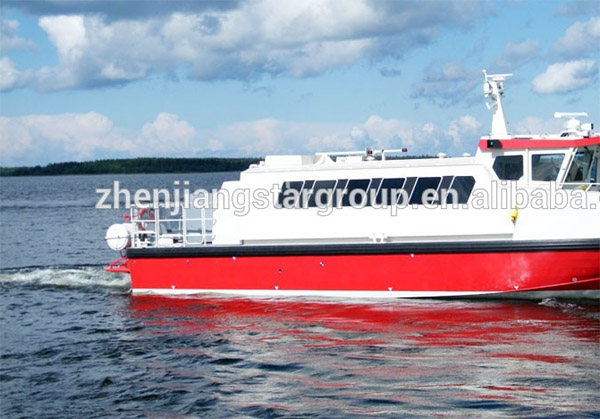

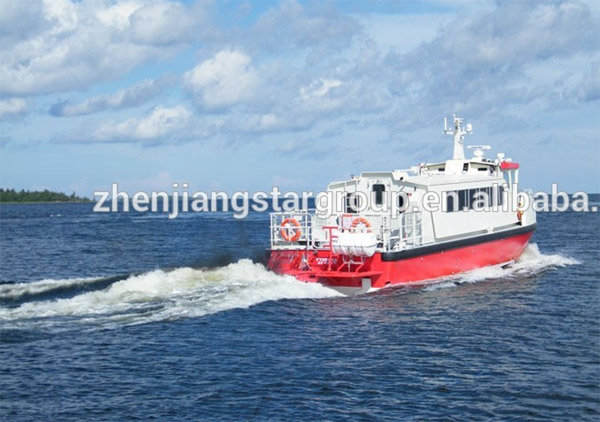

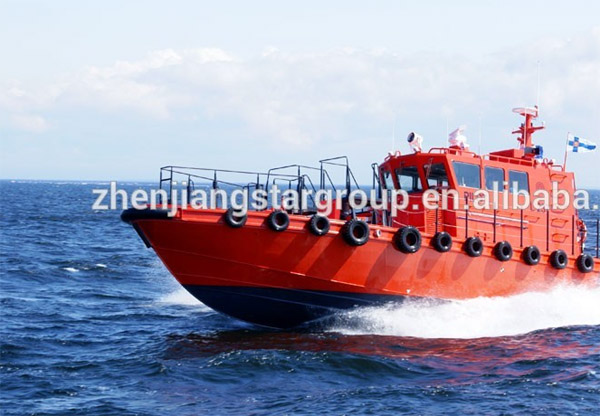

Aluminium Pilot Boat & Yacht

Length, loa

15 m

Length, wl

12.8 m

Beam, boa

4.9 m

Beam, bwl

4 m

Draught

1.2 m

Displacement, mMOC

15.5 t

Displacement, mLDC

18.3 t

Max load, DWT

2.8 t

Speed, vMAX

25 knots

Main Engines

Scania

Engines power

2 x 331kW/450 hp

Propulsion

Open SS Propeller

Fuel capacity

1600 L

Crew

6

Noise level

< 70dB A

Our aluminium boat includes pilot boat series, work boat series, taxi boat series, official boat series and leisure boat series. All boats with vast-range models, in various functions, in high speed, in combination of safety & comfort and in beautiful appearance.

Ourcompany is possessed with professional R&D and design team led by Finnish experienced boat-building engineer. Meanwhile, Finnish and Australian design team can provide full suport for us. The company has passed design qualification appraisal and quality system certificate of CCS, which has laid solid foundation for boat development and production.

Professional, over 20 years aluminum exportation and importation

Reliable, over 8 years certificate in alibaba

Qulified, SGS, Bureau Veritas, ISO9001, CIQS certificates

We are now supply to Italy, USA, MEXICO, Austrilia,Dutch and Asian market.

Welcome to vist our factory to test the quality, service and reputation
