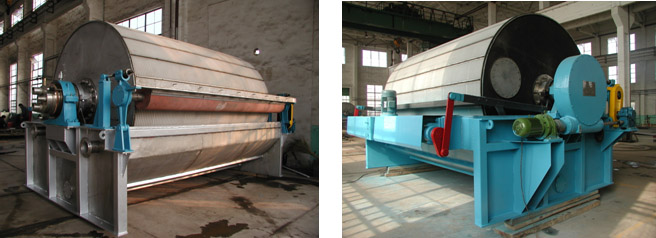

YT-Type Precoating Filter

Application fields：
1.Various sugar liquid (glucose, maltose, dextrin, fructose, sucrose etc) filtering residue removal
2.Pharmaceutical industry Taylor DX, spectinomycin fermentation liquid filtering residue removal
3.Amino acid, enzyme preparation fermentation liquid filtering residue removal
4.Wine and rice wine mud filtering residue removal
5.Food, beverage and fruit juice industry filtering residue removal
6.Chemical industry waste water filtering residue removal
7.Carrageenan etc food additives filtering

Product features：
1.Customized design to meet various customers' demands
2.Using precoating technology, high filtrate clarity
3.Auto scraper discharge mechanism, high filtering effect
4.Spraying device can be added to the drum surface to ensure better washing effect
5.Serious process device, easy installing and using
6.Good producing environment, easy and convenient operation

Technique data：

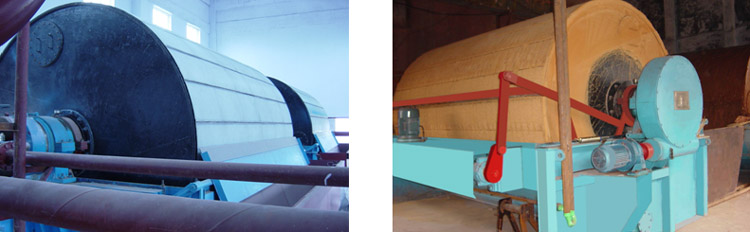

WN-Type Sludge Filter

Application fields：
1.Various fermentation mycelium filtering dehydration
2.Petroleum Chemical, mine industries waste water and sludge filtering dehydration
3.Pigment industry waste water and sludge filtering dehydration
4.Alumina filtering dehydration
5.Acrylic industry polymer washing dewatering
6.Rice etc low protein sugar refining residue removal process
7.Citric acid fermentation residue separation
8.Heavy alkali dewatering

Product features：
1.Customized design to meet customers' various demands
2.Improving air back blow system, better for feeding.
3.Advanced structure, reliable performance
4.Advanced plane contact type distribution valve, good seal, high vacuum degree
5.Easy maintenance, short shutdown time, long service life

Working principle：
GW Vacuum Filter is solid & filtrate separation equipment by scraper discharge. When filtering the separated filtrate penetrates the filter cloth, filter chamber, and filter tube towards the distribution valve, then drains out through the gas-liquid separator, meanwhile the solid particles are intercepted on the filter cloth surface to form filter cake, after transfering to the liquid surface the filter cake goes through the washing area, dewatering area, and dischagring area step by step. The cake in the discharging area is blowed by the compressed air and discharged by the scraper, so far one filter cycle is finished. Then injected into the pulp for next working cycle.

Technique data

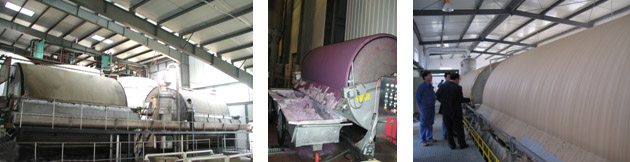

TB-Type Titanium White Powder Filter

Application fields:
1.Titania filtering dehydration
2.Alumina, silicon slag, red mud filtering dehydration
3.Small particles, high viscosity material filtering dehydration

Product features:
1.Customized design to meet various customers' demands
2.Advanced and reasonable structure, elegant appearance
3.Frequency conversion stepless speed, steady transmission
4.Concise process layout, satisfying outlet dryness
5.Cradle of first class product, the first choice of titania industry

Working principle：
TB Vacuum Titania Filter is solid & filtrate separation equipment which works on continuous suction filtering condition by vacuum aspiration. It has the same main structure as ordinary Vaccum filter（External filtration type). During the drum running the material in the tank forms filter cake on the drum surface after filter cloth by the vacuum aspiration, the cake will be scraped down after absorbed by the discharge roller. The filtrate flows into the distribution valve through drum suction tube and drains to realize solid & filtrate separation.

Technique data

LPL-Type Multi-disc Filter

Application fields：
1.Alumina slurry, aluminum hydroxide slurry filtering dehydration
2.Coal preparation plant fine coal filtering dehydration
3.White liquor in paper mill filtering dehydration

Product features：
1.Customized design to meet various customers' various demands
2.Precise plane contact style distribution valve, good seal, long life
3.Auto agitating
4.Large disc, high rotation, large capacity, high speed rotation
5.Grille style metal disc, high strength, easy to disassemble
6.Advanced performance, automatic and continuous, steady running
7.Easy to disassemble & maintain, short shutdown time, long service life
8.Good producing environment, easy and convenient to operation

Working principle：
LPL Vertical Disk Filter by the effect of the suction of the vacuum pump, there will be certain pressure difference between the inner and outside of the sector plate, the solid particles are absorbed to the two sides of the sector plate to form filter cake, the liquid pass the sector covered by filter cake and filter cloth, go alongside the center shaft to the distribution head and drain out, the solid particles will be blowed off by compressed air, so as to achieve separation of solid and filtrate.

Technique data

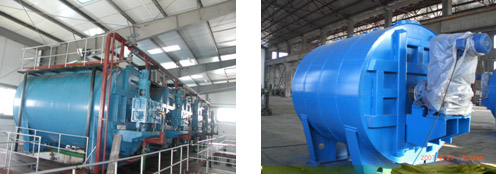

GWJ-Type Crystallizer

Application fields：
1.Glucose liquid crystallization
2.Glutamate, xylose, xylitol crystallization
3.Tartaric acid, malic acid crystallization
4.Salts in chemicals industry crystallization
5.Sodium gluconate, acid calcium crystallization

Product features：
1.Customized design to meet various customers' demands
2.Drive device compact structure, steady running, high efficiency, low noise
3.Reliable mechanical seal, short shutdown time
4.Small gap between helical band and cylinder body,uniform agitation, no blocking
5.Advanced cycle water cooling system, good cooling effect, high crystallization effect.
6.Stainless steel inner cylinder body, corrosion resisting, long service life.
GWJ Crystallizer is a new generation crystallizer, it is developed by combining with the actual situation of domestic users and absorbing foreign advanced technology. This is one of the high quality products for starch and sugar processing enterprises. It applies to the inner and outside two sets cooling cycle system with helical agitator inside the cylinder, scraping crystal plate on the end surface, mechanical seals at the both ends. The combination of advanced design and excellent manufacturing technology ensures your success.

Working principle：
Horizontal installed GWJ Crystallizer is a machine for crystal precipitation by cycle water cooling.The saturated crystal filtrate will be injected from the feed nozzle on top of the crystallizer and get cooling gradually by the combined cooling effect of cycle water in the helical pipe and cylinder interlayer during work process.The crystal filtrate attaches around the crystal and gradually grow bigger.The helical style agitator makes the seed crystal and the crystal filtrate uniform mixing to avoid pseudo crystal appearance and ensure the crystal granule to be uniform. After some time the crystal filtrate gets less gradually and crystal gets bigger gradually, then the crystallization process finishes.

Technique data

GPJ-Type Pressure Multi-disc Filter

Application fields：
1.Flotation concentrate, primary coal slime degydration
2.Heavy alkali dehydration
3.Ferrous metal, nonferrous metal fine mine filtering dehydration
4.Light industry, Building material, City life industries sludge solid & filtrate separation

Product features：
1.Customized design to meet various customers' demands
2.High capacity, high dryness and high recovery rate
3.Precise plane contact style distribution valve, good seal, long service life
4.Easy to disassemble & maintain, short shutdown time, long service life
5.Wholly automatic and Intelligent control, easy operation, working reliably

GPJ Pressure Disc Filter is solid & filtrate separation equipment developed by our company based on foreign advanced technology. Compared to the ordinary vacuum filter, it has advantages such as 2-4 times capacity, half energy consumption, occupying less area, higher cake dryness, It is mainly suitable for solid and filtrate separation for 0-0.5mm flotation fine coal dehydration, coal slime dehydration, ferrous metal & nonferrous metal fine mine dehydration, heavy alkali separation environmental protection, chemical industry and city life sludge.

Working principle：

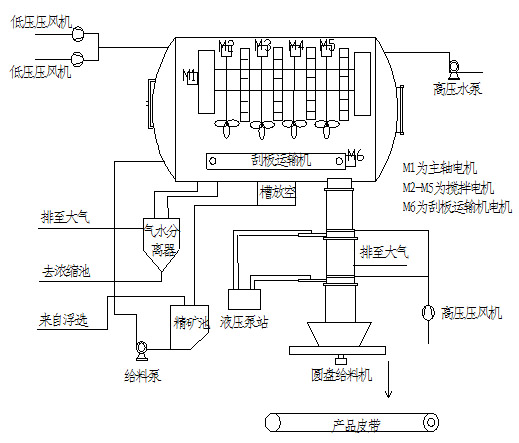

The multi-disc vacuum filter is putted inside the enclosed pressure cabin, flotation concentrate mine is added to the filter tank by the feeding pump, 0.35-0.45 Mpa air pressure will be filled into the pressure cabin, which forms pressure difference on the filter disc between the distribution and the gas-liquid separator which connects with the atmosphere, by the effect of the pressure from the pressure cabin, the liquor in the tank drains out via the filter cloth which is immersed in the coal sludge, the solid particles are absorbed to the filter cloth to form filter cake, along with the disc rotation the filter cake will be dehydrated and go to the discharging area to be discharged to the scraper, then drained out by the discharging device intermittently.

Technique data
