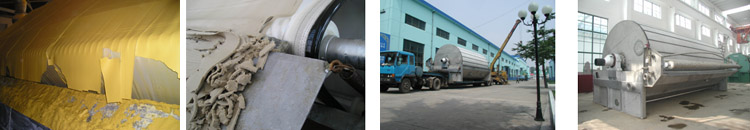

Pleated Vacuum Filter machine / GD-Type Folding-belt Filter

Application fields£º
1.Fermentation liquor (penicillin, for example) filtering dehydration in pharmaceutical industry
2.Metal hydroxide slurry, coal washing wastewater, copper ore filtering dehydration
3.Corn protein filtering dehydration
4.Wheat A starch filtering dehydration
5.Citric acid fermentation liquid filtering dehydration

Product features£º
1.Customized design to meet various customers' demands
2.High capacity, high dryness and easy discharge
3.Simple process layout, saving materials, money and labor
4.High filtrate clarity, high recovery rate
5.Good producing environment, easy and convenient operation

Working principle£º
GD Pleated Vacuum Filter is the filter cloth running style solid & filtrate separation equipment. When working, the stock in the tank penetrate the filter cloth and get into the distribution valve by suction tube by the vacuum extraction, then go through the liquid outlet pipe into the gas-liquid separator and drain the solids form filter cake on the filter cloth. The cake automatically discharges after going through discharge roller by the driving of running cloth. The filter cloth gets into the cloth washing box through automatic error correction device, and gets newborn after both sides rinsing by high pressure water, then passes the tension roller to get back to the drum cover and starts new filtering process.


Technique data£º

Time

GD10

GD15

GD20

GD25

GD30

GD35

GD40

GD45

GD50

GD60

GD70

GD75

GD80

Filtration area???? ( m2)

10

15

20

25

30

35

40

45

50

60

70

75

80

Vacuum?? (Mpa)

0.06¡«0.08

0.06¡«0.08

0.06¡«0.08

0.06¡«0.08

0.06¡«0.08

0.06¡«0.08

0.06¡«0.08

0.06¡«0.08

0.06¡«0.08

0.06¡«0.08

0.06¡«0.08

0.06¡«0.08

0.06¡«0.08

Feed concentration? £¨g/l£©

60¡«100
100¡«130

60¡«100
100¡«130

60¡«100
100¡«130

60¡«100
100¡«130

60¡«100
100¡«130

60¡«100
100¡«130

60¡«100
100¡«130

60¡«100
100¡«130

60¡«100
100¡«130

60¡«100
100¡«130

60¡«100
100¡«130

60¡«100
100¡«130

60¡«100
100¡«130

Feed drying degree

¡İ40%

¡İ40%

¡İ40%

¡İ40%

¡İ40%

¡İ40%

¡İ40%

¡İ40%

¡İ40%

¡İ40%

¡İ40%

¡İ40%

¡İ40%

Daily production quantity? (t/d)

3¡«5

4¡«6

5.5¡«8

6.5¡«10

8¡«12

9.5¡«14

11¡«16

12¡«18

13.5¡«20

16¡«24

18¡«28

20¡«30

22¡«32

Wash cloth water pressure
(kg)

4¡«5

4¡«5

4¡«5

4¡«5

4¡«5

4¡«5

4¡«5

4¡«5

4¡«5

4¡«5

4¡«5

4¡«5

4¡«5

Drum motor power
(kw)

2.2 KW

3 KW

3 KW

3 KW

4 KW

4 KW

4 KW

4 KW

4 KW

5.5 KW

5.5 KW

5.5 KW

5.5 KW

Diamention
(mm)

3688x2693 x1925

4000x3370 x2750

4600x3370
x2750

5200x3370 x2750

5800x3370 x2750

5450x4343 x3570

5900x4343 x3570

6350x4343
x3570

6932x4343
x3570

7632x4570 x3570

8362x4570 x3570

10064x4570
X3570

10064 x4723
X3850

Weight
(kg)

4500

5400

6300

7200

8400

9500

10950

12400

13300

14800

16200

17200

18500
