Starch Filter Machine
Application fields£º
1.Potato starch filtering dehydration
2.Sweet potato starch filtering dehydration
3.Modified starch filtering dehydration
4.Cassava starch filtering dehydration
5.Wheat A starch filtering dehydration
Product features£º
1.Customized design to meet various customers' demands
2.Large capacity, high outlet dryness
3.Advanced filter plate, big circulation area, high filter efficiency
4.Precise plane contact style distribution valve, good seal, high vacuum degree
5.Using precoating technology, the filter medium changes to starch precoating and filter screen, high clarity
6.Auto scraper discharge mechanism, easy operation
7.Simple process device, less investment, strong adaptability
8.Advanced and utility structure, steady running, short shutdown time

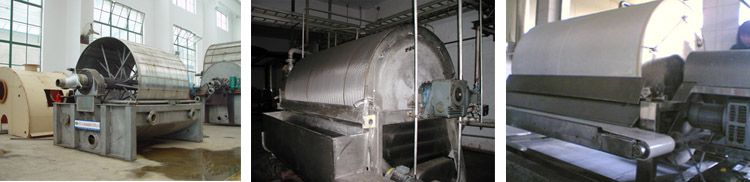

By absorbing the foreign advanced same type technology and our previous DL-type production experience, combined with actual practice of domestic users, we develop the new generation XDL Vacuum Starch Filter. Excellent technology, modern manufacturing and mature using experience will go towards the future together with the grain further-processing industry.
Working principle£º
When the XDL Vacuum Starch Filter works, by vacuum suction the slurry in the tank will form certain thick starch granule precoating on the drum surface and form filter medium with the filter cloth, the separated filtrate penetrates the precoating and filter screen then drains out after going through the suction tube, distribution valve, gas-liquid separator, the low moisture outer filter cake will be scraped by scraper. The dehydration and discharge process will be finished during the running of the drum.
Details Data and Specification£º
Item |
XDL5 |
XDL6 |
XDL10 |
XDL12 |
XDL18 |
XDL20 |
XDL25 |
XDL30 |
XDL40 |
Filtration area£¨m2£© |
5 |
6 |
10 |
12 |
18 |
20 |
25 |
30 |
40 |
Feed concentration£¨t/m2.h£© |
0.25-0.3 |
Feed drying degree |
¡Ý60% |
¡Ý60% |
¡Ý60% |
¡Ý60% |
¡Ý60% |
¡Ý60% |
¡Ý60% |
¡Ý60% |
¡Ý60% |
Operating vacuum degree£¨Mpa£© |
0.04¡«0.07 |
0.04¡«0.07 |
0.04¡«0.07 |
0.04¡«0.07 |
0.04¡«0.07 |
0.04¡«0.07 |
0.04¡«0.07 |
0.04¡«0.07 |
0.04¡«0.07 |
Main drive motor power£¨kw£© |
3 |
3 |
3 |
4 |
4 |
4 |
4 |
4 |
5.5 |
Drum speed£¨r/min£© |
8¡«15 |
8¡«15 |
8¡«15 |
8¡«15 |
5¡«8 |
5¡«8 |
5¡«8 |
5¡«8 |
5¡«8 |
Stirring motor power£¨kw£© |
1.5 |
1.5 |
2.2 |
2.2 |
3 |
3 |
3 |
3 |
4 |
Agitator swing(times / minute) |
16¡«25 |
16¡«25 |
16¡«25 |
16¡«25 |
16¡«25 |
16¡«25 |
16¡«25 |
16¡«25 |
16¡«25 |
diamention£¨mm£© |
3028
¡Á2245
¡Á1800 |
3228
¡Á2245
¡Á1800 |
3712
¡Á2551
¡Á2070 |
3885
¡Á2495
¡Á2050 |
4139
¡Á3052
¡Á2825 |
4439
¡Á3052
¡Á2825 |
4726
¡Á3052
¡Á2825 |
5736
¡Á3052
¡Á2825 |
5580
¡Á4800
¡Á3660 |
weight(kg) |
3500 |
4020 |
4100 |
4650 |
6270 |
6500 |
7100 |
8600 |
11680 |
|
|
